Specifications

Lift up

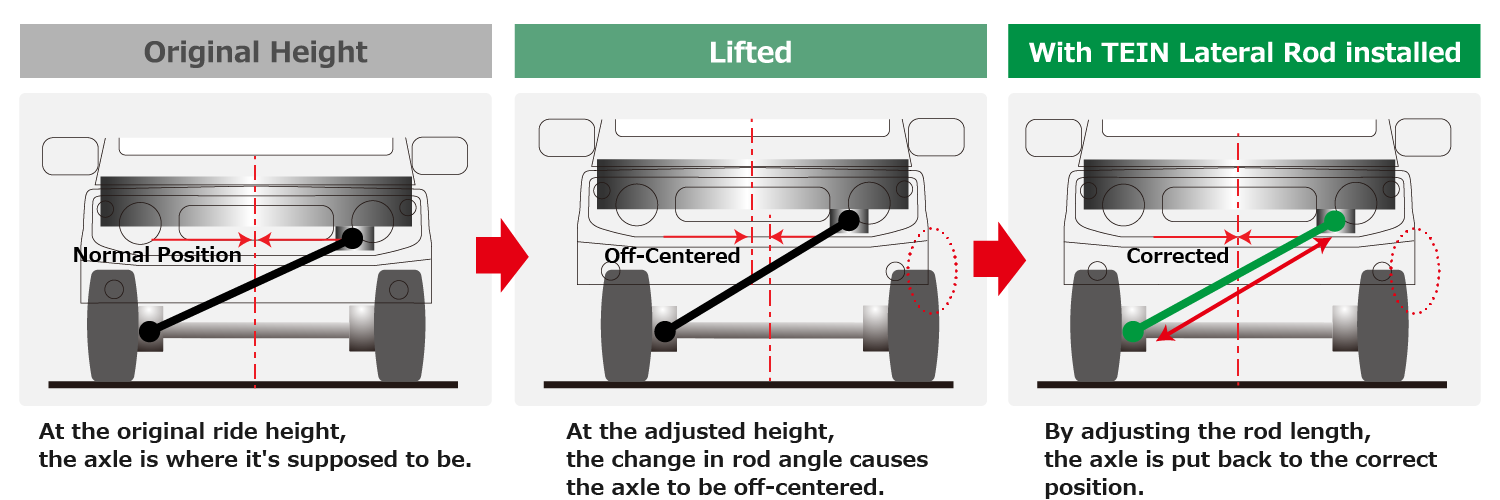

Vehicles with beam-axle suspension system are equipped with the lateral (Panhard) rod to connect the axle to the car body/chassis, preventing lateral movement. Under such suspension system, the axle is shifted sideways when the vehicle's ride height is altered(lifted). Lateral displacement of the axle can affect the vehicle's straight-moving behavior and cause the wheel on one side to protrude past the fender. In such case, the shifted axle position needs to be corrected by changing/adjusting the lateral rod length.

Lift up

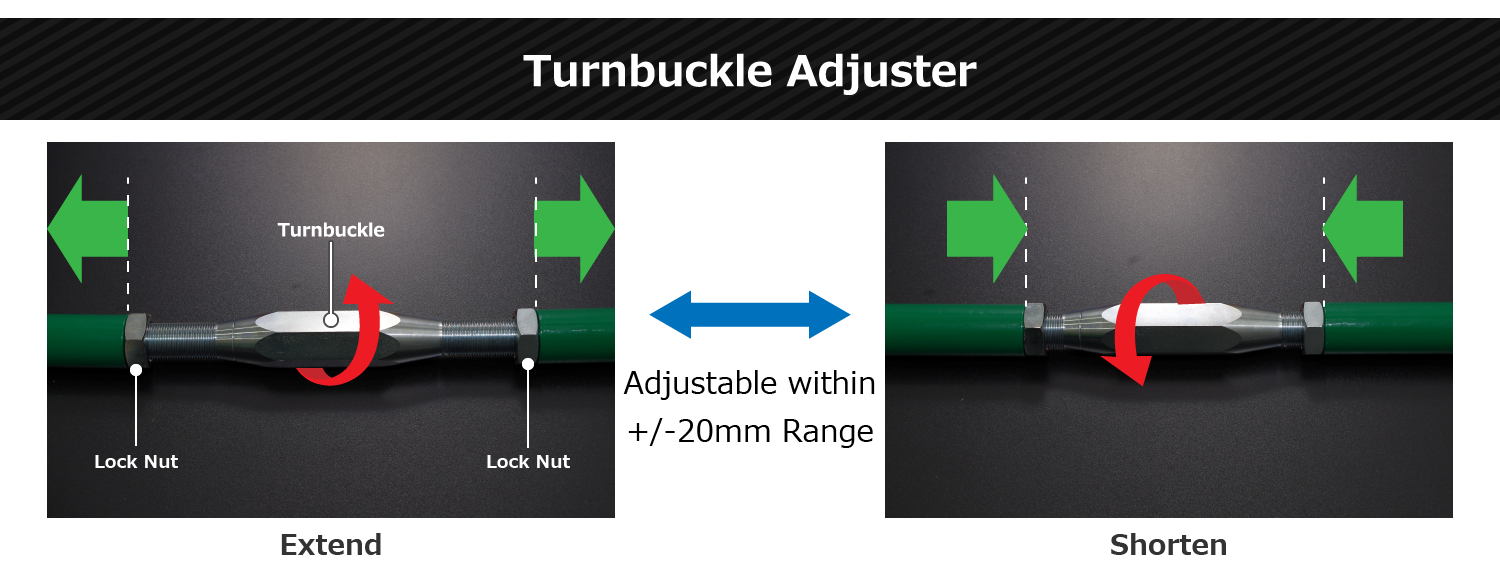

Use of the adjustable lateral rod allows for adjustment by millimeter increments. Turnbuckle adjuster, enabling equal adjustment on both sides, makes it possible to adjust the length without removing the rod from the vehicle. With the lateral rod still on the vehicle, simply loosen the lock nuts, rotate the turnbuckle, re-tighten the lock nuts at the desired length and the vehicle is all set to go.

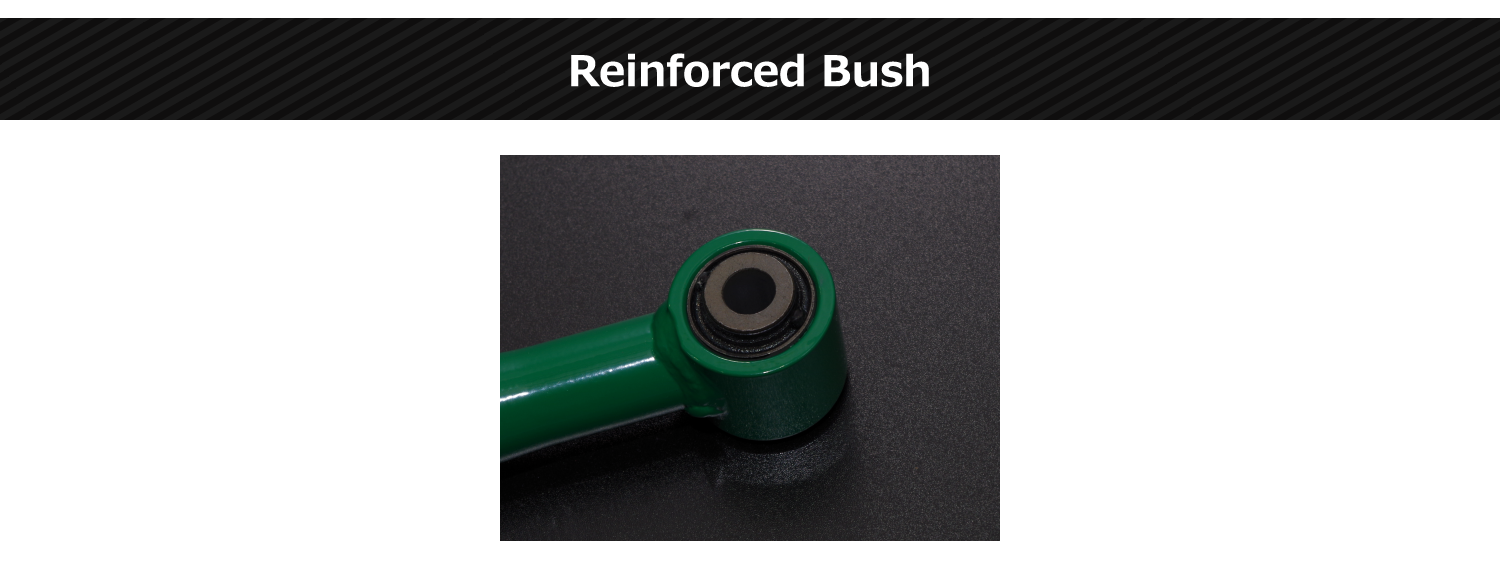

Reinforced bushes prevent the axle shifts while driving and improve durability.

Lineup

Make Model Chassis
Code
Ft / Rr Adjustable Range
(compared to OE)
Part No. MSRP
excl. Tax
Remarks
TOYOTA FJ CRUISER GSJ15W Rr +/-20mm LATG1-11AR0 JPY 31,000 NOT COMPATIBLE WITH X-REAS MODEL.
LAND CRUISER URJ202W Rr +/-20mm LAC91-11AR0 JPY 31,000 NOT COMPATIBLE WITH VEHICLE WITH AHC.
LAND CRUISER
NEW
FJA/VJA300W Rr +/-20mm LAC91-11AR0 JPY 31,000 NOT TESTED ON
GR SPORT MODEL.
LAND CRUISER PRADO GRJ120W Rr +/-20mm LATG1-11AR0 JPY 31,000 NOT COMPATIBLE WITH VEHICLE WITH AIR SUSPENSION.
LAND CRUISER PRADO GRJ150W Rr +/-20mm LATG1-11AR0 JPY 31,000 NOT COMPATIBLE WITH VEHICLE WITH AIR SUSPENSION.
SUZUKI JIMNY JB23W Ft +/-20mm Under Development
Rr +/-20mm
JIMNY JB64W Ft +/-20mm
Rr +/-20mm
JIMNY SIERRA JB43W Ft +/-20mm
Rr +/-20mm
JIMNY SIERRA JB74W Ft +/-20mm
Rr +/-20mm
