EDFC5

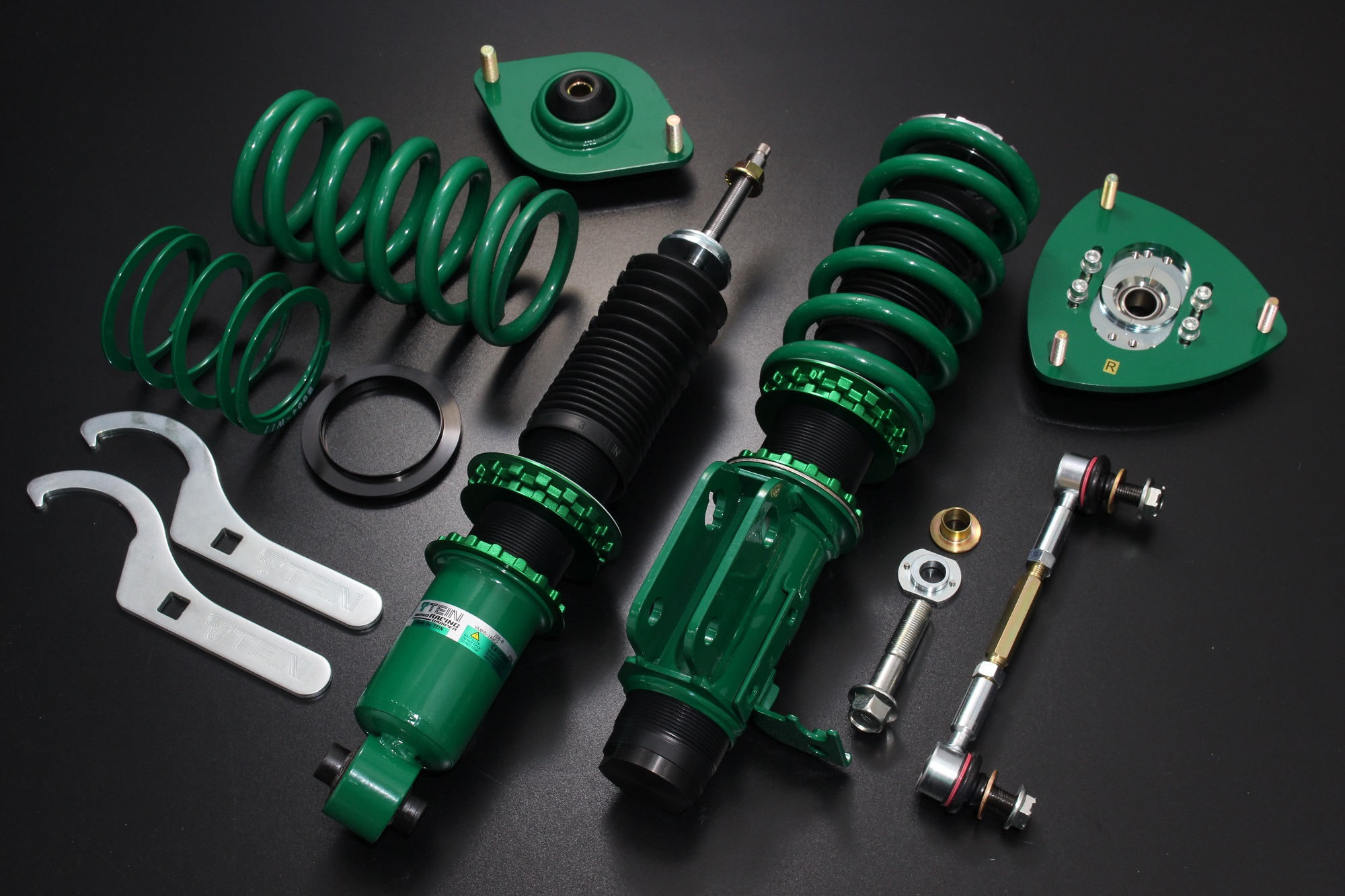

Specifications

Setting Capabilities Dedicated for Sports Use Camber / Caster Angle Adjustable Pillow Ball Upper Mount Camber Angle Adjustable Lower Bracket Selectable Spring Rate
Damping Force Customize System Mono-Tube (Upright Strong Tube) Full-Length Adjustable ADVANCE M.S.V.
Damping Force Adjustable EDFC Compatible Durable & Reliable

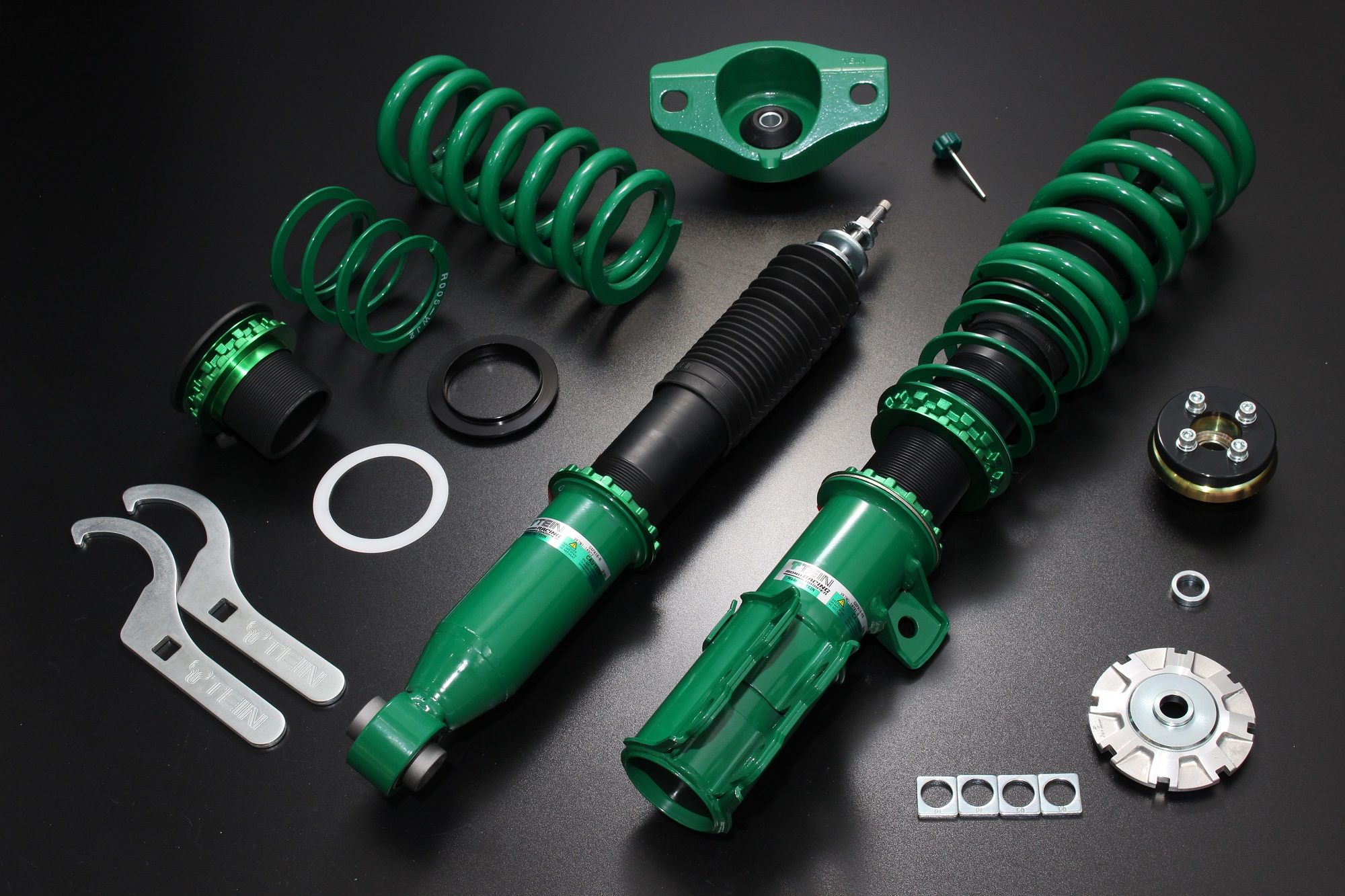

Product Specifications

Setting Capabilities Dedicated for Sports Use

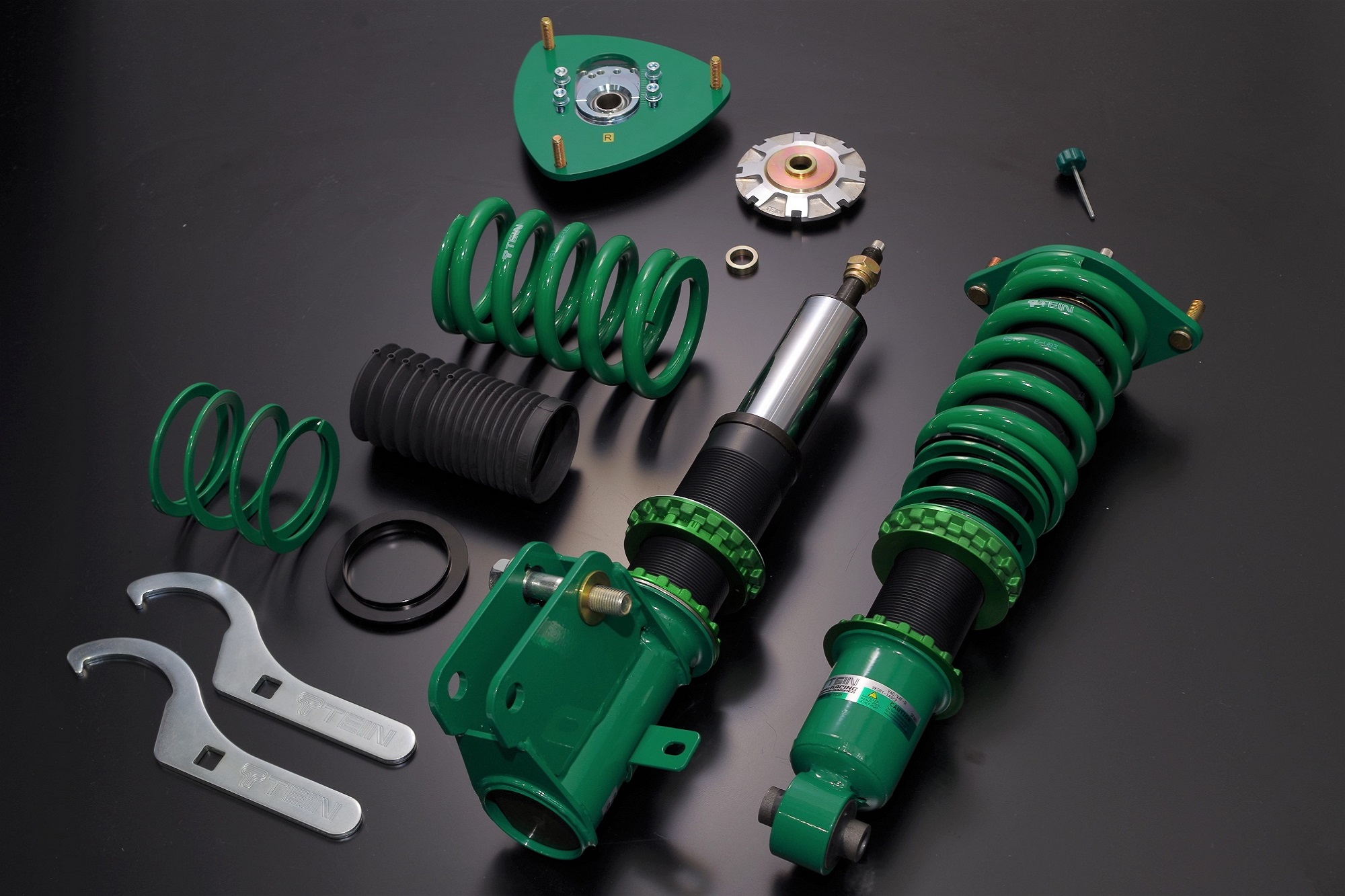

MONO RACING is developed to satisfy the drivers who frequently take their cars for a spin at the race tracks. Based on the settings of the high-end model SUPER RACING and on a wealth of data gained through participation in various motorsports, spring rates and damping force for MONO RACING are determined to be most suitable for sports driving.

Camber / Caster Angle Adjustable Pillow Ball Upper Mount

For front strut suspensions, MONO RACING includes the camber and caster angle adjustable pillow ball upper mounts evolved from SUPER RACING upper mounts. Many upper mounts provide camber adjustment feature, but MONO RACING upper mounts are also caster adjustable. Camber angle can be adjusted steplessly while caster angle adjustment is available in 4 steps and both can be adjusted individually.
*Except some models.

Caster

Camber Angle Adjustable Lower Bracket

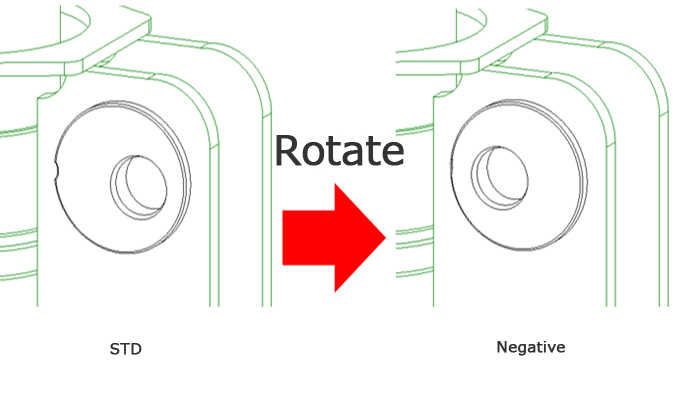

Lower brackets on strut type suspensions come with camber angle adjustment feature. Camber angle can be adjusted by rotating the eccentric washer 180°.
This feature can enable camber angle adjustment, even if it can not be adjusted with the upper mounts. Both adjustments at the upper mounts, if applicable, and the lower brackets combined allows for total camber angle adjustment to meet various needs and preferences.
*Optional camber adjustment washers with different offsets are available.
  Mono Racing uses Type-C adjustment washers.
*Except some models (e.g. struts with inset type brackets)

Selectable Spring Rate

At the time of purchase of a new MONO RACING kit, +/-2kgf/mm of the standard spring set can be chosen, for a free of charge.
*Only +2kgf/mm springs are available for some models.

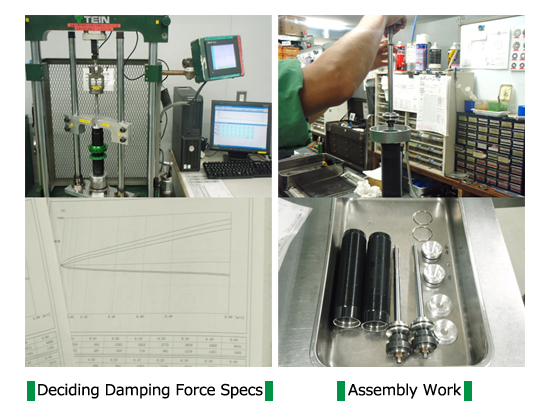

Damping Force Customize System

Thinking of customizing the damping force settings and/or stroke length, to meet your driving styles? You can have that done when purchasing a new kit at lower prices than having overhaul job done later on.

  • Normal lead time is about 2 weeks from the time of order.
  • Extending Stroke charge includes the price of replacement piston rod.
    Stroke change service might not be available for some vehicle models. Consult TEIN for details.
Multi-Link / Wishbone Strut
Damping Force Customize System
(Only available at the time of purchase of a new MONO RACING kit)
Revalving Only JPY 14,500 JPY 17,500
Shortening Stroke JPY 16,500 JPY 19,500
Extending Stroke JPY 26,800 JPY 27,800
Normal Overhaul & Revalving
(After purchase)
Revalving Only JPY 20,500 JPY 24,500
Shortening Stroke JPY 22,500 JPY 26,500
Extending Stroke JPY 32,800 JPY 34,800

(MSRP per single damper, excl. tax)

Mono-Tube

Mono tube structure of MONO RACING completely separates the oil chamber and the gas chamber and hence aeration does not occur. This enables stable generation of linear damping force, reacting to the finest changes in road surfaces, even when running aggressively and repeatedly on circuits. With this, superior-quality MONO RACING offers capability for the most delicate control of the vehicle and for the deepest level of communication with the roads.

Easily-Reachable Damping Force Adjustment Knob

For strut type suspensions, which require high lateral stiffness, highly-rigid "Upright Strong Tube" structure, the fruit of participation in professional motorsports worldwide such as WRC & WRX, is adopted.
Damping force adjustment knob attached to the top of the shock absorber allows easier access, making the repeaded adjustment within the limited time less hassle, and makes the installation of EDFC motors (optional) a breeze.
Waterproofing process, which is a must for inverted types, is reduced/simplified greatly.

バンプラバー

Use of specially-designed urethane bump rubbers effectively reduces the bump impact, to maintain the comfortable ride even when going over bumps/gaps and to protect dampers from bottoming out. (The image shown is for wishbone / multi-link types. Some models use OE bump rubbers.)

Full-Length Adjustable

Advantage: adjusting ride height has little effect on ride quality.

Same stroke length Changed full length

In addition to combining a low down style with ride comfort, this system offers more setup options for sport driving too.

ADVANCE M.S.V.

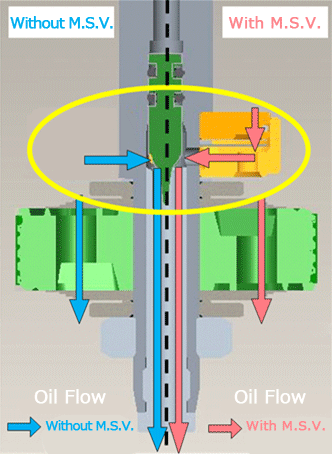

Oil Flow

MONO RACING uses "ADVANCE M.S.V." for damping force adjustment feature. "ADVANCE M.S.V." combines "M.S.V." mechanism to finely control damping force in micro speed range with "ADVANCE Needle" to widen the damping force adjustable range, for superior steering response and traction performance, fully utilizing the damping force adjustable range.

M.S.V.

Damping Force Adjustable

MONO RACING features 16-level damping force adjustment, for simultaneous adjustment of compression and rebound.
Modify ride comfort and handling according to your preference, changing the properties of the shock absorber with the adjustment dial.

Adjustment Dial

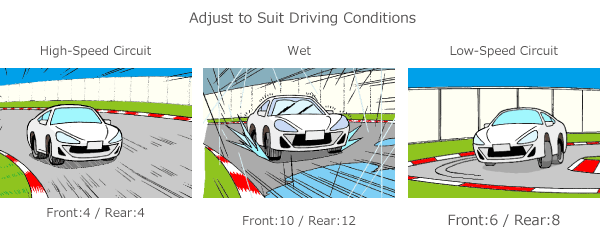

Adjust to Suit Driving Conditions

The above are examples; actual settings vary according to the vehicle's circumstances.

EDFC Compatible

The EDFC Series offer easy damping force adjustment from the driver's seat.*
* Some vehicle models are not compatible

A motor instead of adjustment dial

A motor instead of adjustment dial

Please note: the example in the photo is not MONO RACING

Remote adjustment from the cockpit!

EDFC Series Lineup

EDFC5

5

Automatic & Flexible Adjustment with New Jerk-Reactive Control
for Enhanced Driving Experience

Individual Wheel Control Jerk-Reactive Adjustment

Cornering-Reactive Accel/Deceleration-Reactive

Speed-Reactive Wireless Control AI (Learning Function)

EDFC ACTIVE PRO

EDFC ACTIVE PRO

Electronic Damping Force Controller, Featuring Auto-Adjustment

Individual Wheel Control Cornering-Reactive

Accel/Deceleration-Reactive Speed-Reactive Wireless Control

Durable & Reliable

Optimal Dust Boot

Dust Boot

Thanks to its smooth compression and high durability, the dust boot guards the piston rod from damage, and keeps foreign material out of the shock absorber.
(Some vehicles use their OE dust boots)

No-Sag Spring

Spring

Cold formed with SAE9254 steel (minimum tensile strength 200 kgf/mm2), our springs are outstandingly sag-proof and boast extreme resiliency.

Superior rust protection is ensured with a highly durable powder coating that does not peel or flake. Our high-quality springs can be used without worries, in any conditions.

High-Performance Damper Oil

Damper Oil

Since TEIN's damper oil maintains a stable viscosity in a broad temperature range, it sustains smooth stroke and reliable damping force in a variety of circumstances.

Due to excellent anti-foaming properties, it's resistant to cavitation (bubble forming). Since it withstands high heat too, it's suitable for intense sport driving as well.

Furthermore, the damper oil keeps up its superior performance long-term, because it's resistant to deterioration over time.

Rust-Proofing

TEIN-Green Powder Coating

Powder Coating

A bright TEIN-green powder paint is used on the shock absorber's shell case. Our powder coating technique produces an extremely strong and durable barrier. No harmful organic solvents are used, for minimal pollution.

Superior durability and corrosion resistance are achieved by TEIN's patented 2-Layer, 1-Bake powder coating method, which uses 2 layers of anti-rust paint on a blasted surface.
(Japanese patent number 4347712)

Special Surface Treatment 'ZTP Coating'

ZTP Coating

Our unique ZTP Coating surface treatment on the ride height adjustment thread is abrasion resistant against gravel/debris, and further enhances its corrosion resistance.

With zero claims for stuck parts due to rust in 500,000 shock absorbers, TEIN shock absorbers are amazingly rustproof. We're confident of customer satisfaction even in coastal areas or regions with heavy snowfall.

>>We're confident of TEIN shock absorbers' surface treatment!
